The new SmartSENS SC3235AI, a 3MP sensor (2304H x 1296V, 30fps) with MIPI and parallel outputs, features SmartSens SmartPixel™ technology for reliable, high-quality imaging. It offers richer details and better image quality compared to 2MP sensors. Very good and sharp imaging at night, with AI human detection and low false alarm rate.

Award winning technologies:

SFCPixel®

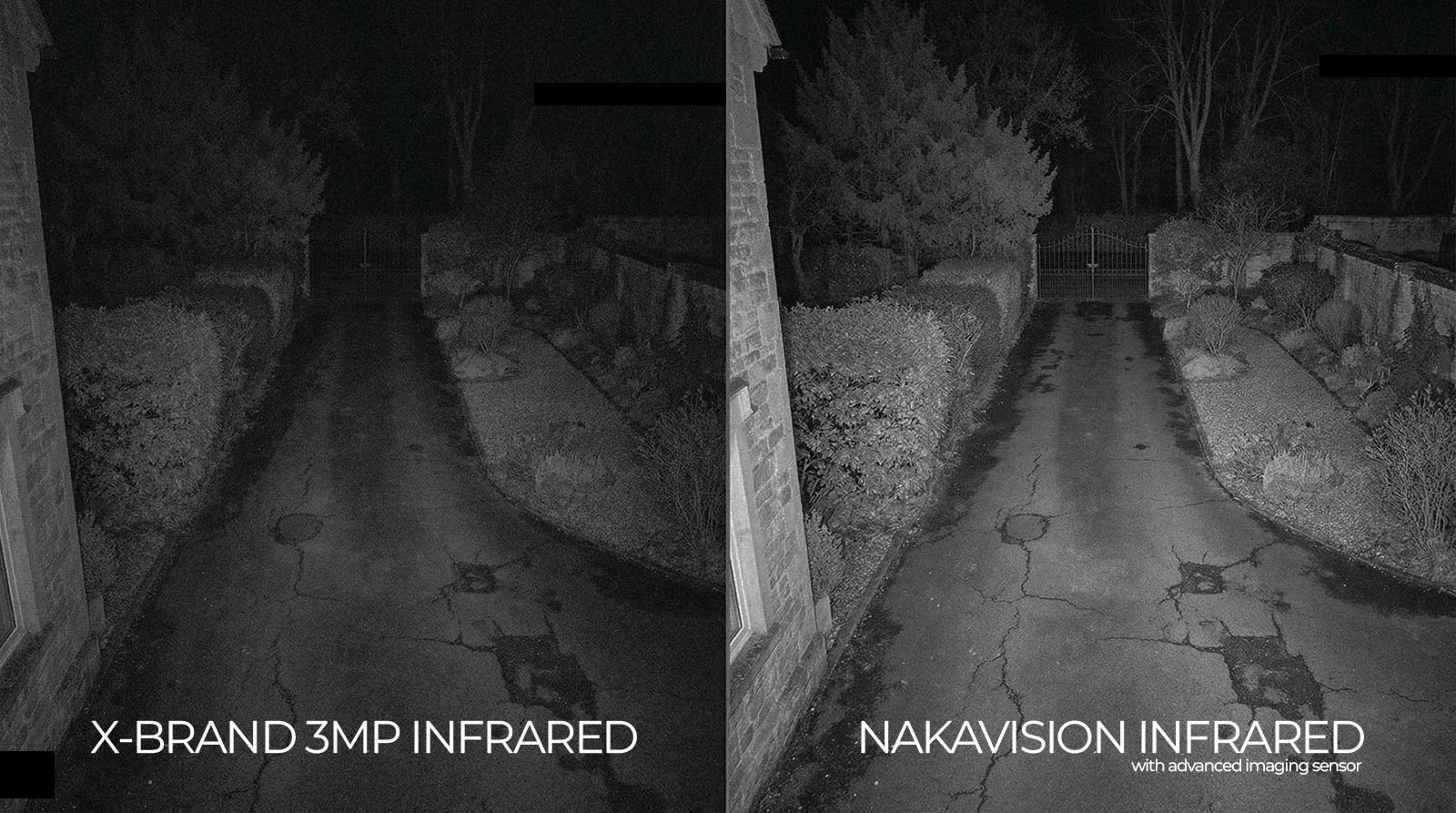

SmartSens unique SFCPixel® technology obtains higher voltages by shortening the distance between the Source Follower (SF) and the PhotoDiode (PD), achieving higher sensitivity and better night vision imaging.
PixGain™

Combining High Gain and Low Gain, PixGain Technologies achieve exceptional imaging at night and in low-light conditions while capturing fine details during daytime and in glaring light.
Lightbox IR®

NIR Enhancement Technology: 2x efficiency in the infrared light range between 850 and 940 nm.

The SmartSENS Won the “Sensor of the Year” at 2023 World Electronics Achievement Awards.

Watch what happens around your house.
Always.

Designed, developed and tested by Nakatomi's technical team, with best-in-class components.

Technical specification:

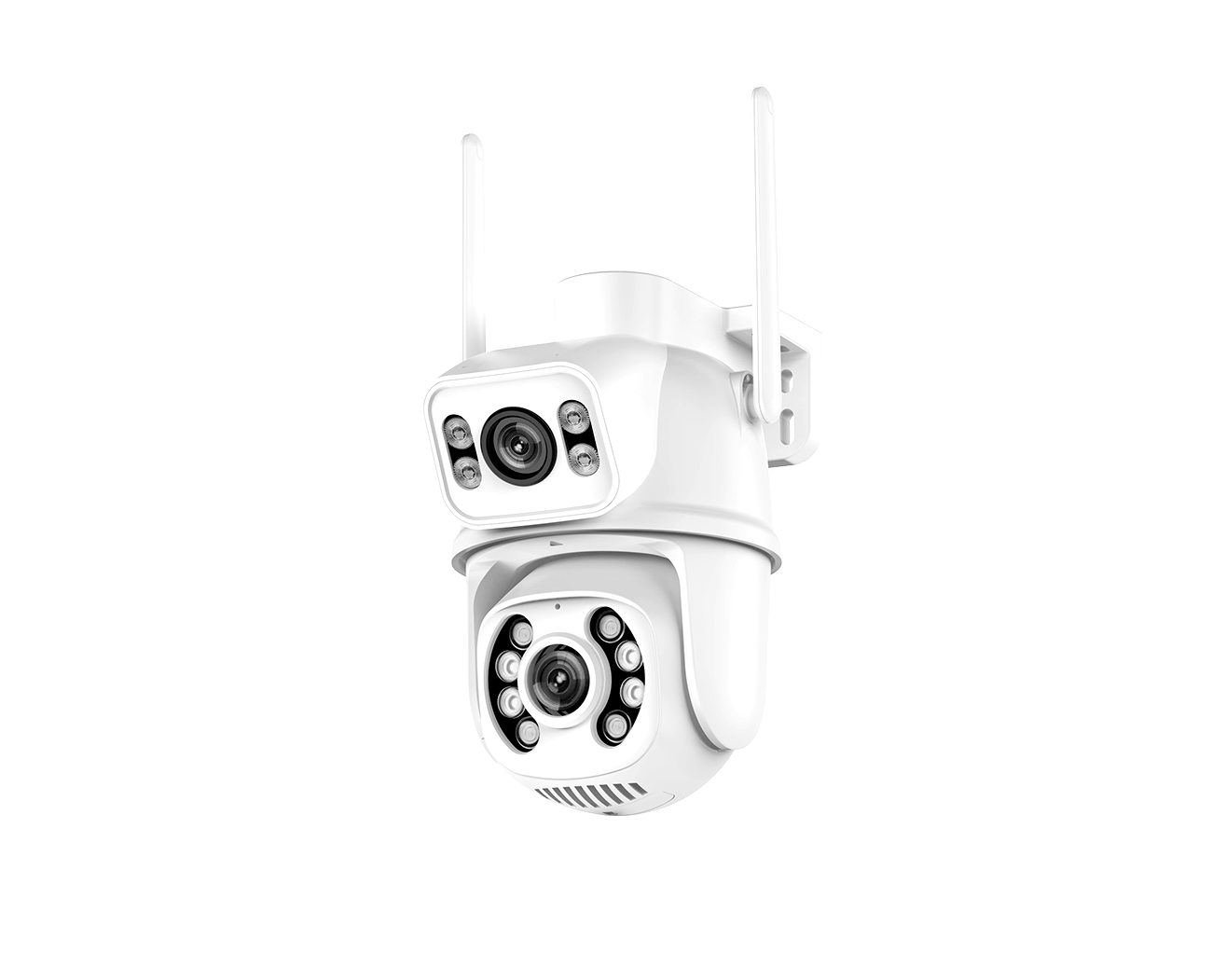

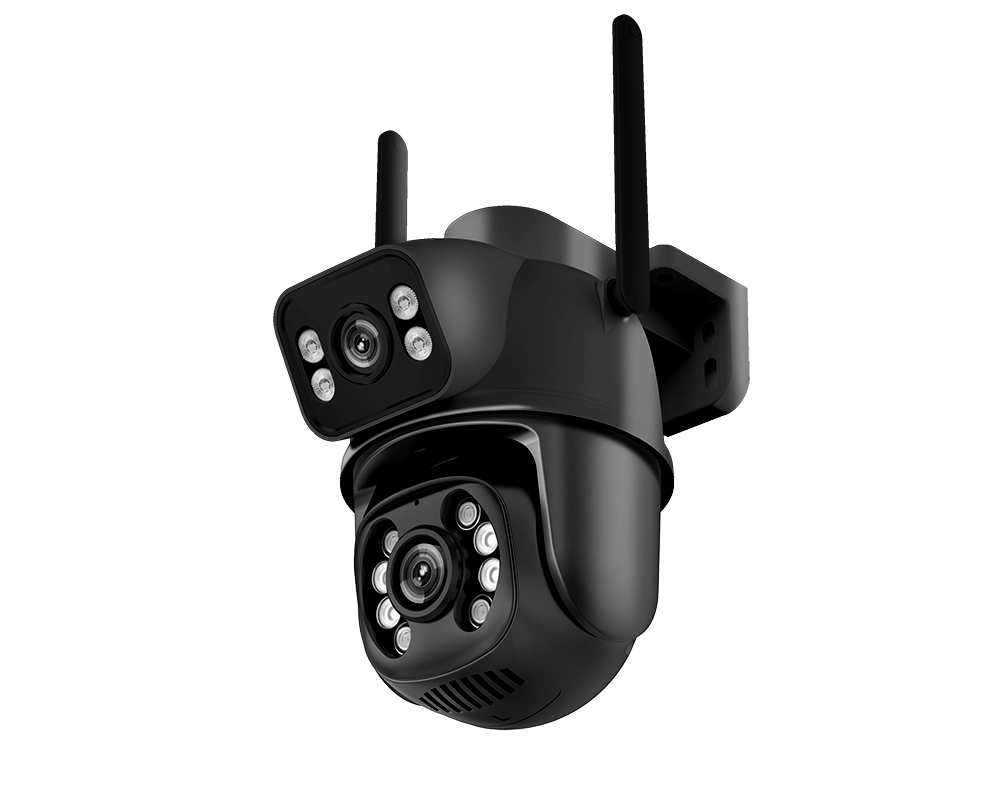

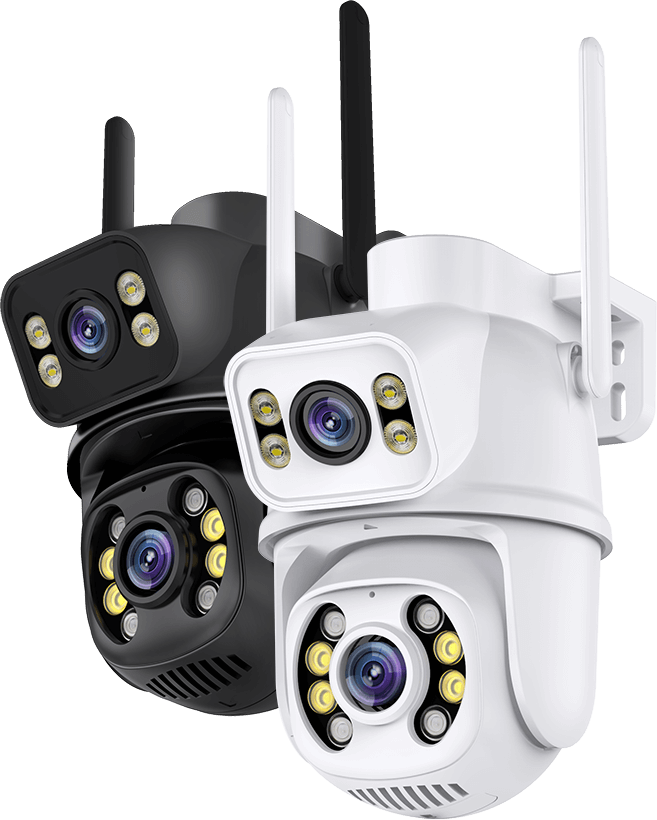

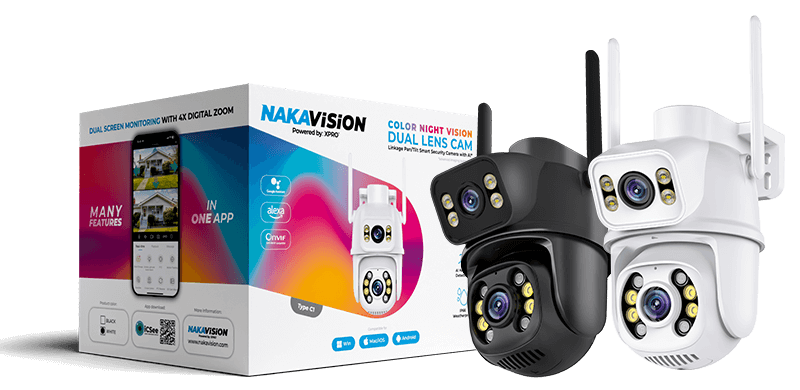

Modell: Nakavision C1 - dual lens, indoor-outdoor 3+3 Megapixel Pan/Tilt IP camera

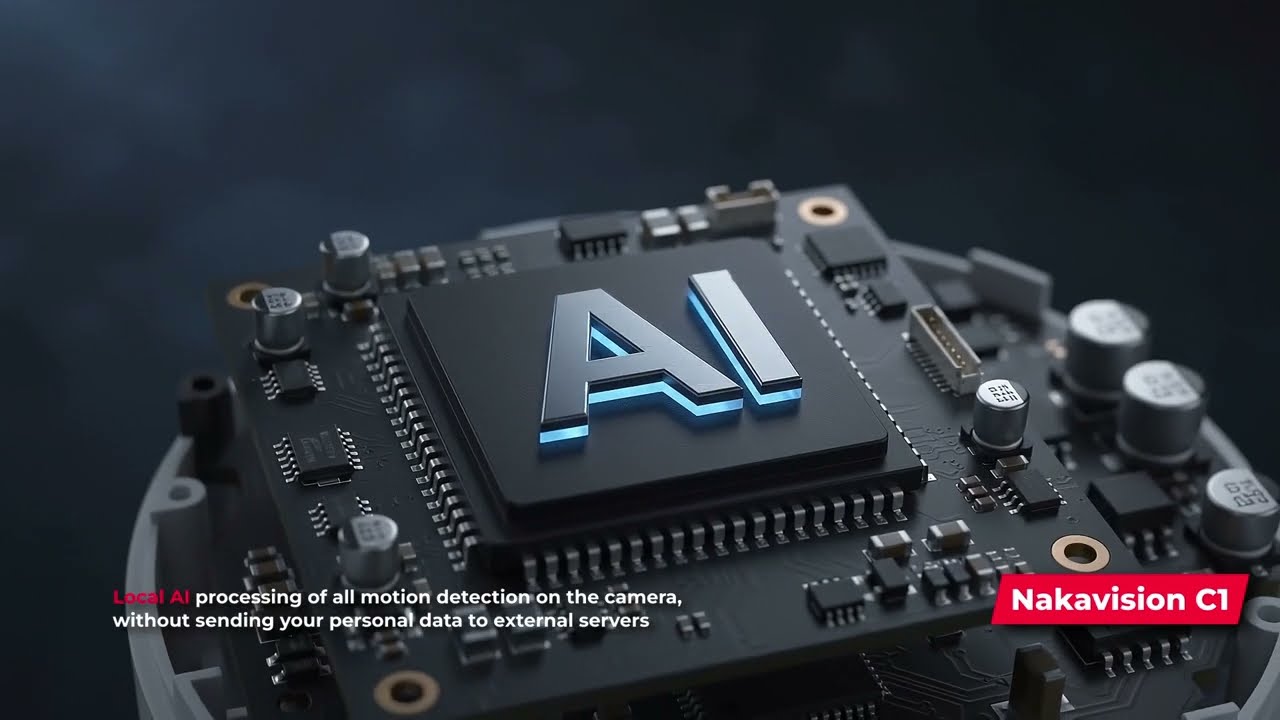

System: Dual-core 32-bit DSP (XM535x), Pure Hard Compression, Watchdog
Sensor: total 6,000,000pixels 1/3” SmartSens SC3335AI (Advanced Imaging™) high-performance CMOS
Minimum illumination: in colour mode 0.01Lux @ (F1.2, AGC ON), but 0 Lux for IR / in black & white mode 0.001 Lux @ (F1.2, AGC ON), but 0 Lux for IR
Video recording: H.265AI encoding, dual-stream, AVI format; bitrate: 0.1M~10Mpbs; frame rate 1~30fps Stream output: H264 streams - Main stream: 2560x1440@12fps; Sub-stream: 800x448@12fps
LED: 12pcs high power LED (8 infrared and 4+4 white light), and Color Night Vision supported
Day/night mode switching: supported, adjustable sensitivity conventional IR-CUT
Noise reduction: supported, 2D/3D
WDR (Wide Dynamic Range) mode: supported (optimal imaging in very bright/dark environments)
Sound system: G.711A encoded, 2-way intercom sound, picture/sound synchronization
Sound power: input level 2Vp-p 1kΩ, output level 30mW 16Ω
Wired network: 1x RJ45 Ethernet interface, 10/100M
Wireless network: 1x Wifi antenna, Bluetooth
Motion system: gimbal, self-calibrating, 1x horizontal, 1x vertical motor
Hard Reset: supported, 1 button reset (10sec)
Supported OS: Android, iOS, iPadOS, Windows, MacOS (in some cases with third-party software)

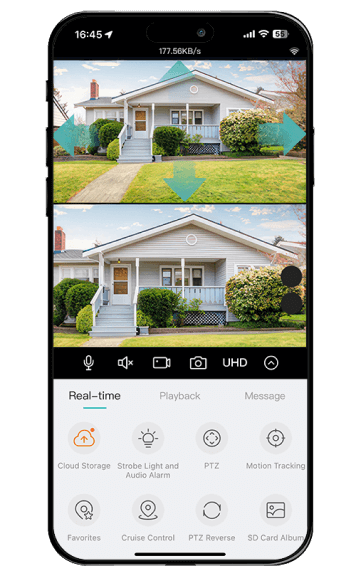

Supported software: iCSee, XMeye and ONVIF compatible software (Win: BlueIris, Mac: SecuritySpy)

*The iCSee application is developed by Hangzou Jftech Co., Ltd., please contact the developer for support.
APP Store is a service of Apple Inc., Google Play and Google Assistant are a service and trademark of Google LLC, Alexa is a trademark and service of Amazon.com Inc. Support is available on the respective service's website.
Nakavision reserves the right to change hardware without notice if it provides improved performance.
